Protecta FR Board – Fire Rated Boards – 60mm X 600 X 1200mm 2-S Ribbed

General Product Details

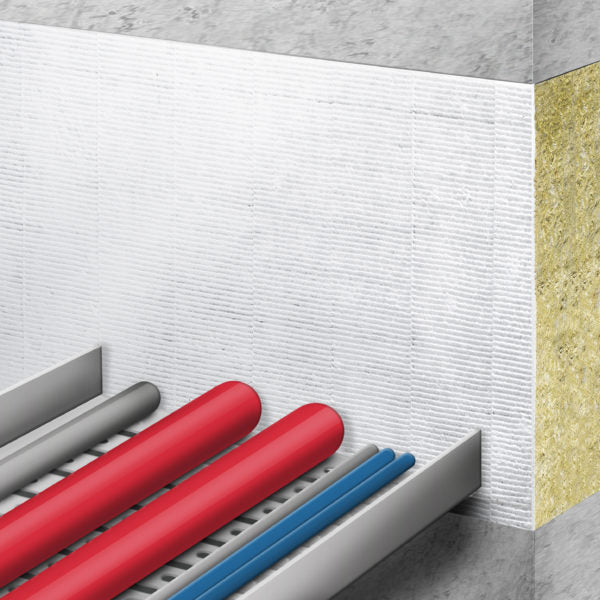

Protecta® FR Board is designed to prevent the spread of fire and smoke through openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services. Protecta® FR Board will also maintain the acoustic design performance in fire rated walls and floors.

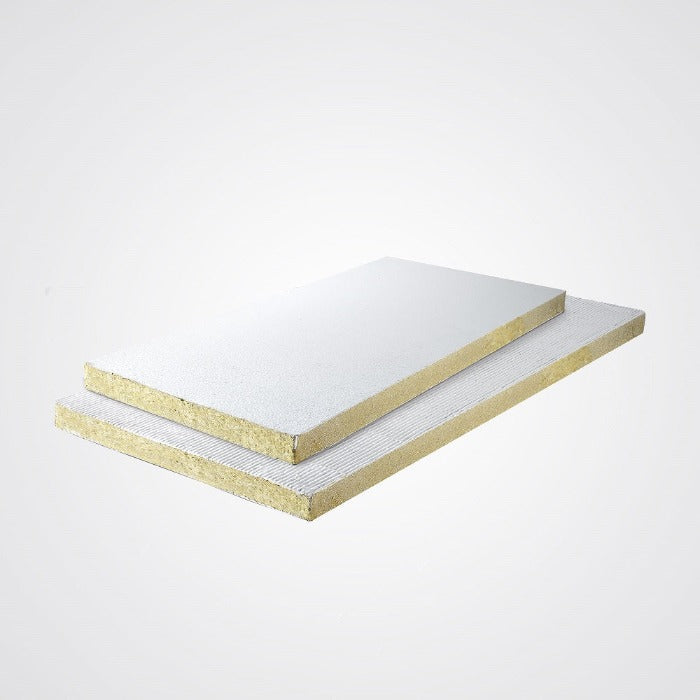

Protecta® FR Board consists of a high density stone wool core, over-coated with Protecta® FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and prevents the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the building services.
Protecta® FR Board is available with top coating on one or two sides, selected on the basis of installation considerations and fire resistance. On site, Protecta® FR Board must be used together with Protecta® FR Acrylic for sealing around building services and the surrounding construction.

Properties

• Classified for all types of constructions with or without building service penetrations
• Simple and very quick to install
• Resists UV, humidity and frost (once cured)
• Easy to retrofit additional building services after installation
• Permanently flexible – will accommodate movements during fire and movements in the construction it has been fitted within
• Suitable for most surfaces, including concrete, bricks, masonry, steel, wood, gypsum, glass, plastic and most non-porous surfaces. Should not be used in direct contact with bituminous materials
• May be used in unlimited lengths in walls with heights up to 1200 mm and in floors with widths up to 800 mm.
• May be installed in drywalls with or without framing around the opening
• Halogen free with added fungicides
• Protecta® FR Board can be supplied with a smooth surface
• Precautions are required to be taken to prevent a person stepping onto a blank horizontal penetration seal
